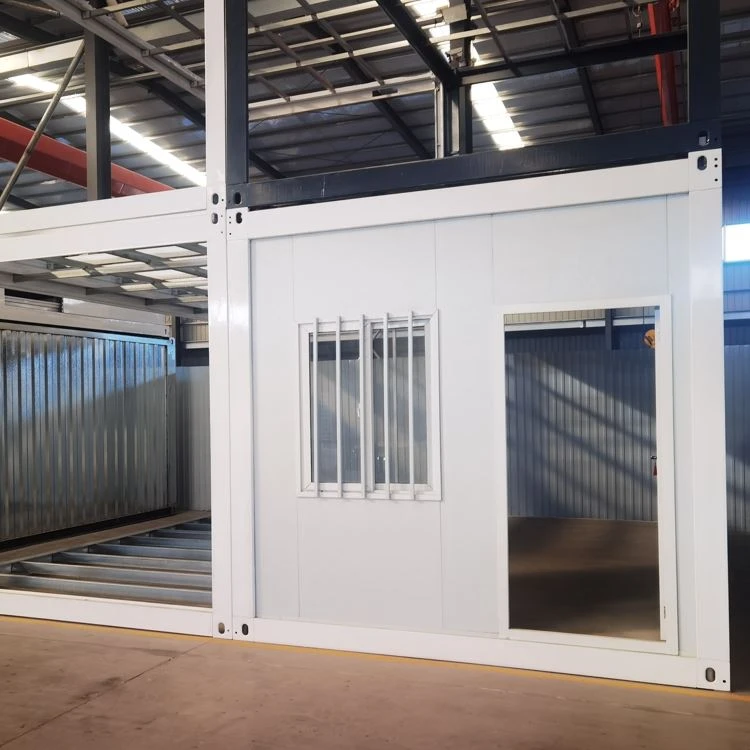

Quick Assembly Container House

Item

Specification

Steel Frame

Bare steel 2.2mm

Bare steel 2.5mm

Bare steel 2.75mm

Bare steel 3.0mm

Sockets and Switches

add 1 pc

Flooring

1.6mm B-class plastic flooring

1.6mm A-class plastic flooring

2.0mm A-class plastic flooring

Door

Suitable for 50 Wall panel

970*1970 mid-range steel door (970*1970, flat panel with inserted frame, national standard fireproof lock, for 50 wall panel)

1740*1970 mid-range steel double doors (1740*1970, flat panel with inserted frame, European standard fireproof lock, for 50 wall panel)

Suitable for 75 wall panel

970*1970 mid-range steel door (970*1970, flat panel with inserted frame, AB lock, for 75 wall panel)

970*1970 mid-range steel door (970*1970, flat panel with inserted frame, national standard fireproof lock, for 75 wall panel)

1740*1970 mid-range steel double doors (1740*1970, flat panel with inserted frame, European standard fireproof lock, for 75 wall panel)

Window

Suitable for 50 Wall panel

High-grade plastic-steel windows (3.0mm thick insulated glass, with anti-theft grilles and screen windows, 930*1130mm, 2 pieces) – dedicated for 50 wall panels

Suitable for 75 wall panel

Plastic-steel windows (single glass with anti-theft windows, 930*1130mm, 2 pieces (dedicated for 75 wall panels))

High-grade plastic-steel windows (3.0mm thick insulated glass, with anti-theft grilles and screen windows, 930*1130mm, 2 pieces) – dedicated for 75 wall panels

Broken bridge aluminum

High-grade heat-insulating broken bridge aluminum casement windows (4.0mm thick insulated glass, screen windows, 930*1130mm, 2 pieces) – universal for 50/75 wall panels

Alluminum alloy

High-grade aluminum alloy sliding windows (4.0mm thick insulated glass, screen windows, 930*1130mm, 2 pieces) – universal for 50/75 wall panels

50mm wall Panel

rock wool panel

50/950mm, double-sided 0.35mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

50/950mm, double-sided 0.4mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

50/950mm, double-sided 0.45mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

50/950mm, double-sided 0.5mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

EPS foam panel

Change "70KG bulk density" in the above to "EPS foam board"

75mm wall panel

rock wool panel

75/950mm, double-sided 0.3mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

75/950mm, double-sided 0.35mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

75/950mm, double-sided 0.40mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

75/950mm, double-sided 0.45mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

75/950mm, double-sided 0.50mm orange peel texture, 70KG bulk density, single-sided film-coated, including pallets

EPS foam panel

Change "70KG bulk density" in the above to "EPS foam board"

Canoy/Rain shelter

1 canopy, 2 canopy brackets, and a full set of connecting bolts; all made of galvanized materials, welded and then entirely electrostatically spray-painted.

Connector (used for detachment of the container houses)

outer left and right locking components

outer up and down locking components

Bathroom

1100*1400mm as shows in our video

Customized color of steel structure

main steel frame color change based on RAL K7 color card

Item

Specification

Steel Frame Structure Bare Steel 2.0mm

2.0mm galvanized steel strip--top beam, section width 180mm
210*150*210 high-end galvanized angle pieces - 4 pieces
4 pieces of transverse galvanized 40*60mm square tube secondary top beams, 1 piece of longitudinal 40*80mm galvanized square tube, 2 pieces of 40*60mm galvanized square tubes
75mm glass wool insulation quilt, 14kg/m³
0.4mm color steel single tile

2.0mm galvanized steel strip--bottom beam, 160mm section width roller beam, 4 pieces of 210*150*160 high-end galvanized angle pieces,
9 pieces of galvanized 40*100*1.1mm square tube galvanized cross braces, 1 piece of longitudinal 40*40*1.1mm (square tube)

2.0mm galvanized steel strip--column, 210/150mm in width, 2526mm in height
8.0mm L-shaped column stiffeners (connecting parts)
Equipped with connecting plates for upper, lower, left and right connections between boxes, and 12*30 hexagon socket bolts

Ceiling Tile

0.3mm/831 ceiling tile

Bottom

Flashing parts, 50mm/75mm optional

Flooring

5 pieces of 18mm thick cement fiberboard

Flooring finishes

1.0mm Grade B plastic floor

Door

970*1970 mid-range steel door (970*1970, flat panel insert frame, AB lock, for 50 wall panel)

Windows

Plastic-steel windows (single-glazed with anti-theft grilles, 930*1130mm, 2 pieces (exclusively for 50 wall panels))

Wall Panel

50/950mm, double-sided 0.3mm orange peel texture, 70KG bulk density, film-coated and including pallets

Downspouts

50mm, PVC downspouts, 4 pieces

Ceiling Trim

Homogeneous parts for 4*4 831 ceiling tiles used in ceiling

Internal corner of a column

Galvanized steel internal corner line, white lime

Accessories

5 tubes of structural adhesive, 80 pieces of 4*20 round-head self-drilling screws, 60 pieces of 12*75/12*100 hexagon self-drilling screws, 40 pieces of 4*25 self-tapping screws, 1 set of connecting bolts

Electric System

Electrical distribution (three-core), 6㎡ incoming line, 4m², 2.5m², 1.5㎡ copper wires
Three sockets
One single-pole switch
Two lamps
One set of distribution box
One industrial plug and one industrial socket

Packaging

Main profiles wrapped with bubble wrap, loose parts loaded into the container
