There are various styles of prefabricated container houses for you to choose from. We can customized suitable energy systems, solar panels, energy storage batteries, solar air conditioners, solar refrigerators, etc. for you according to your needs.
Specifications of the prefab expandable house.

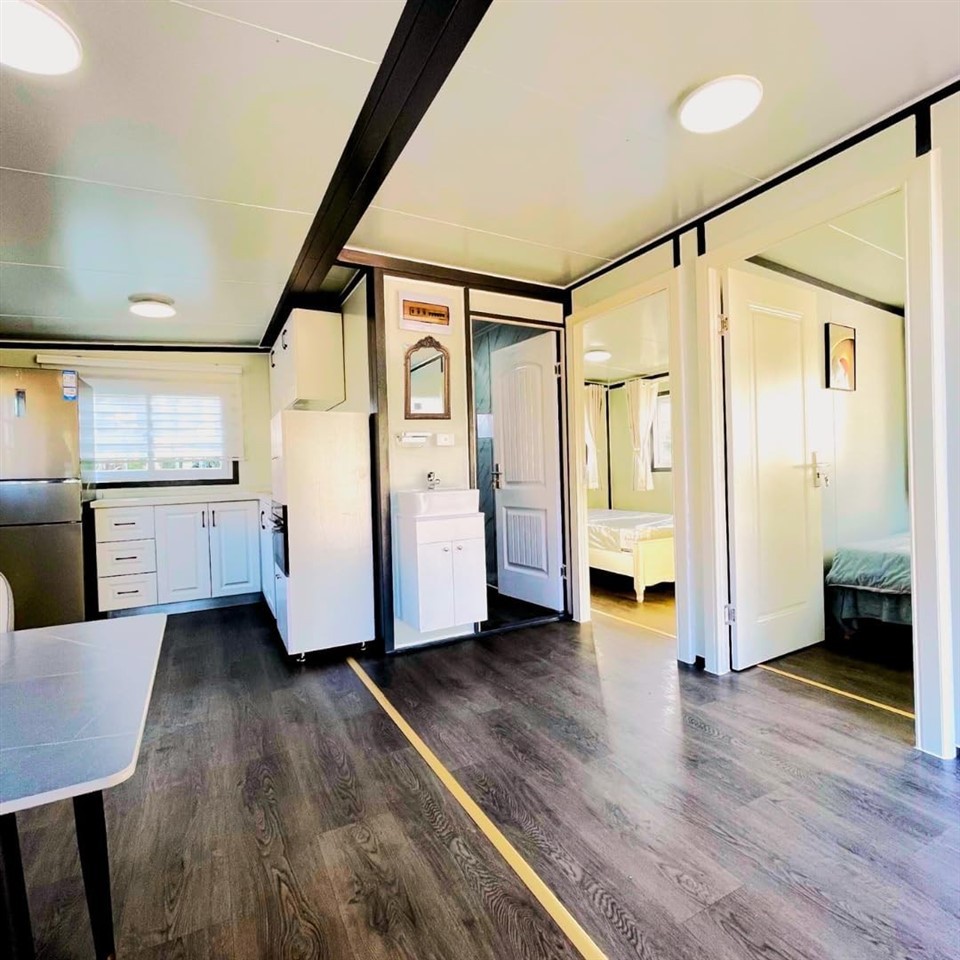

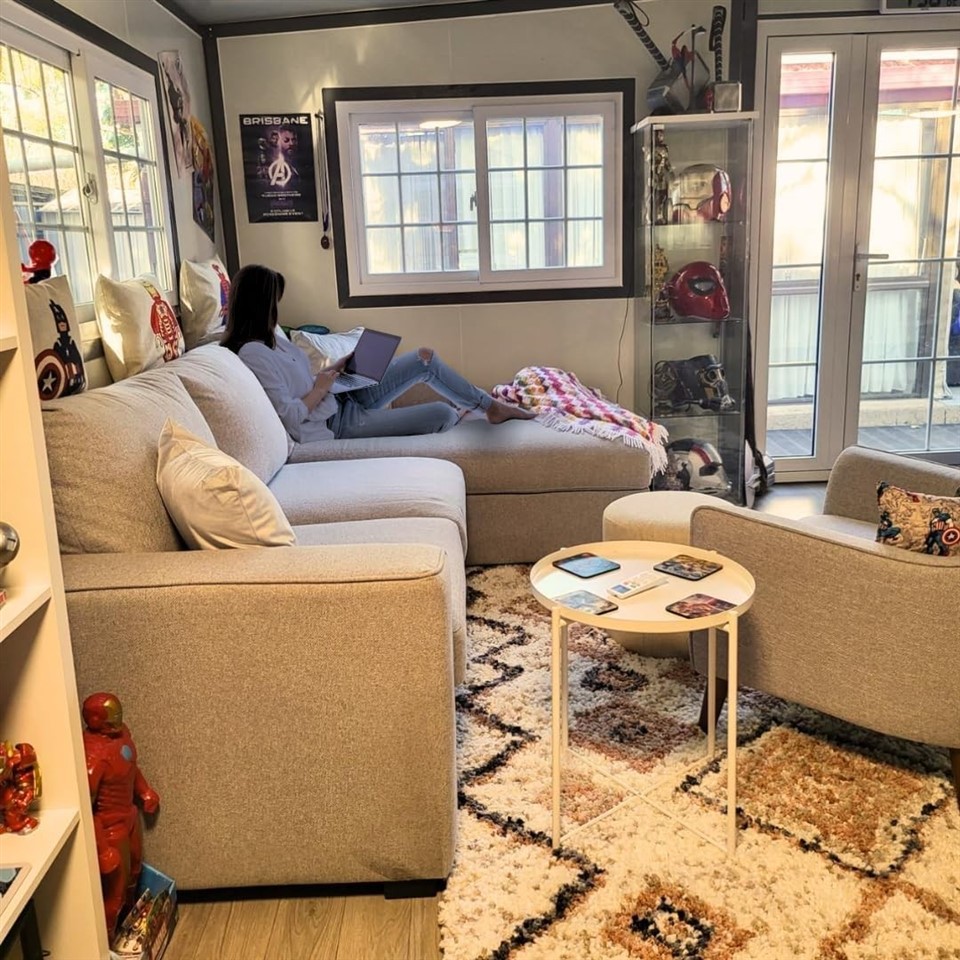

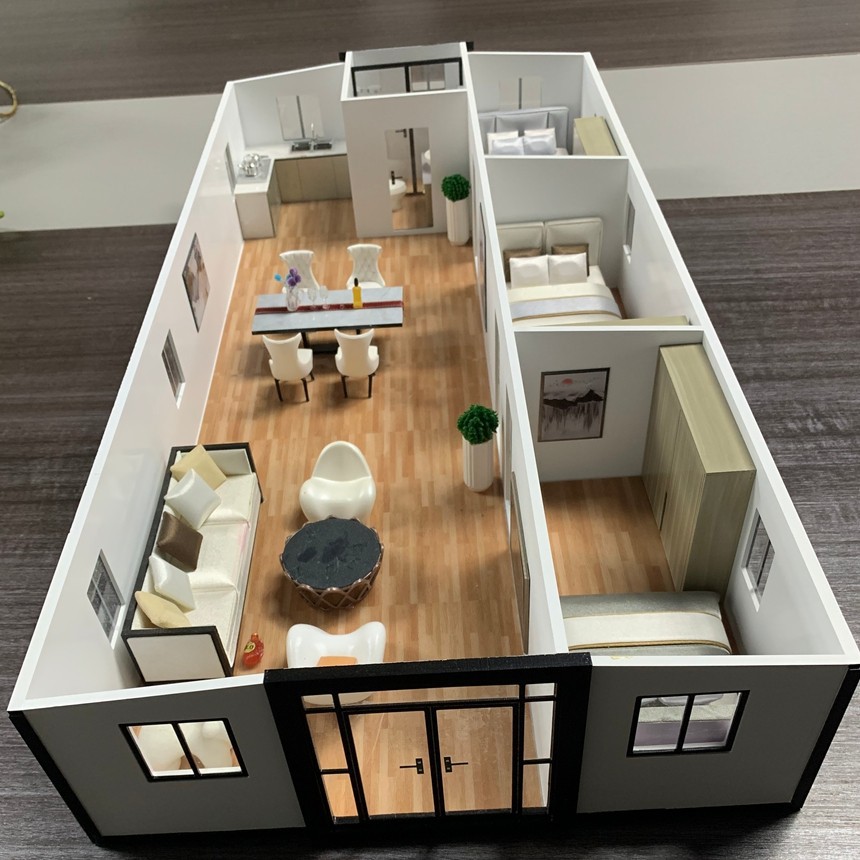

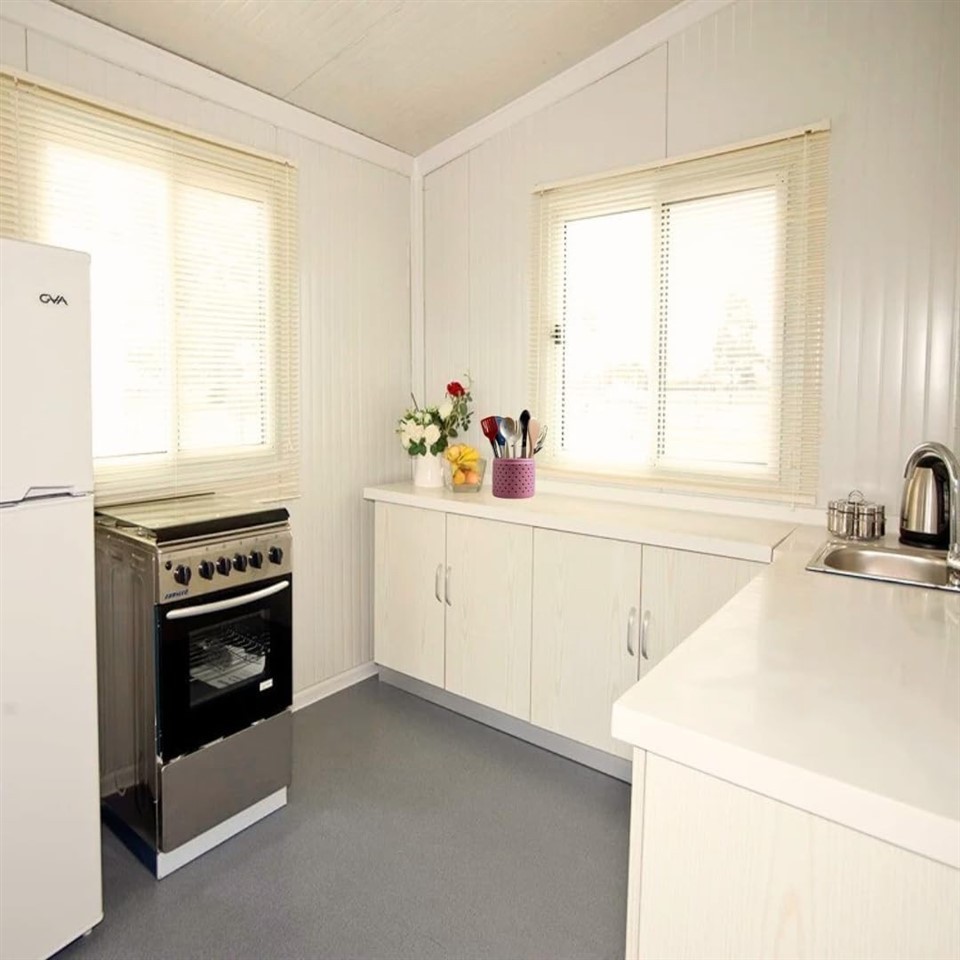

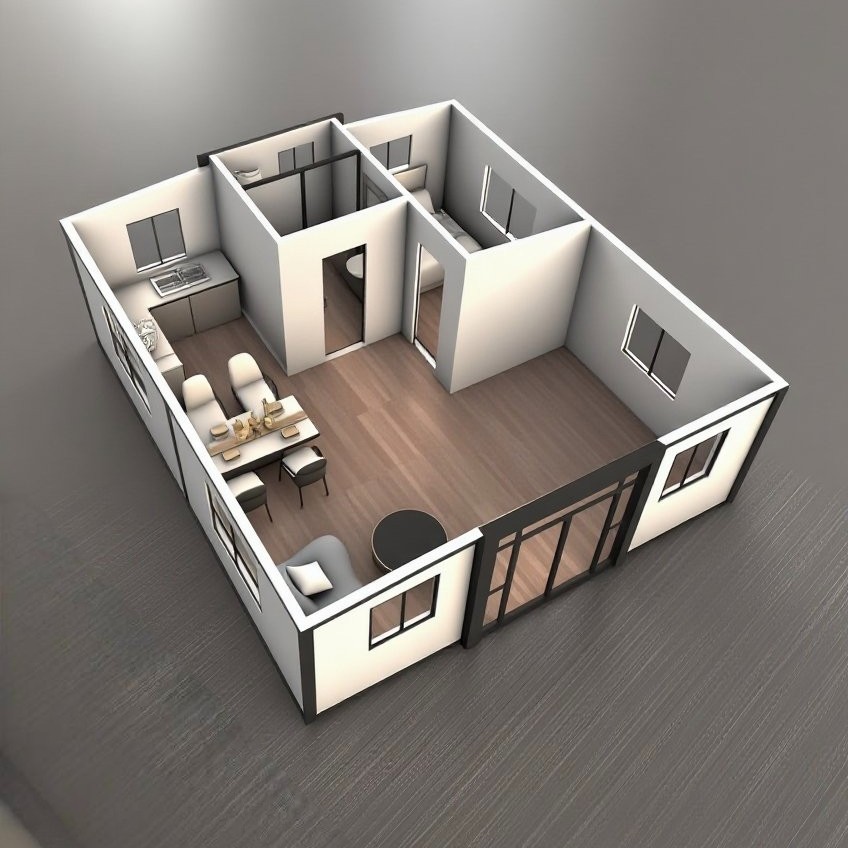

Possible designs
Optional Solar energy system

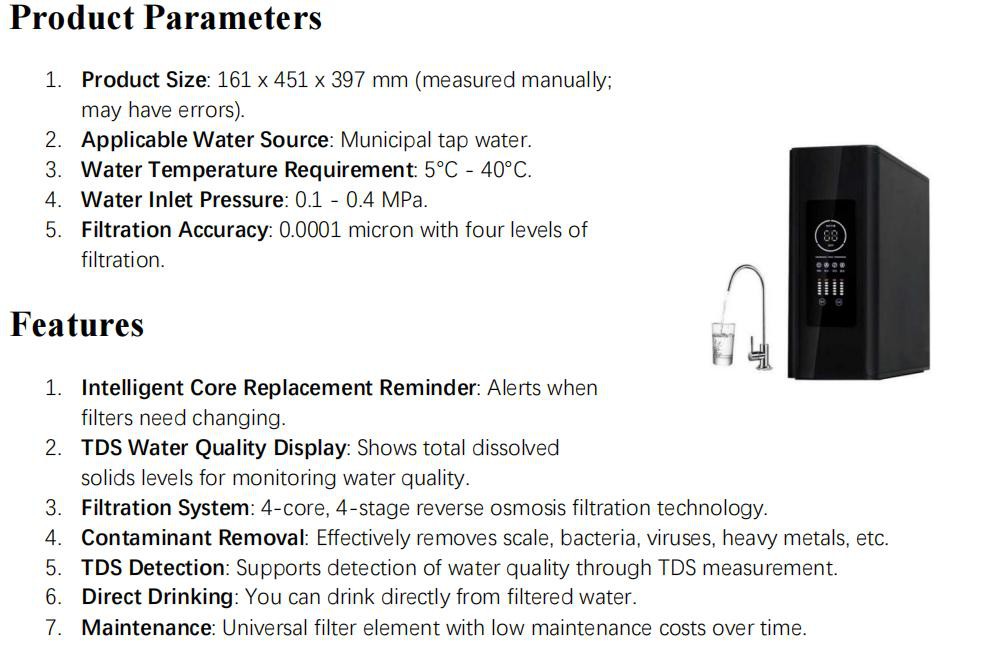

Water purifier
More styles can be customized

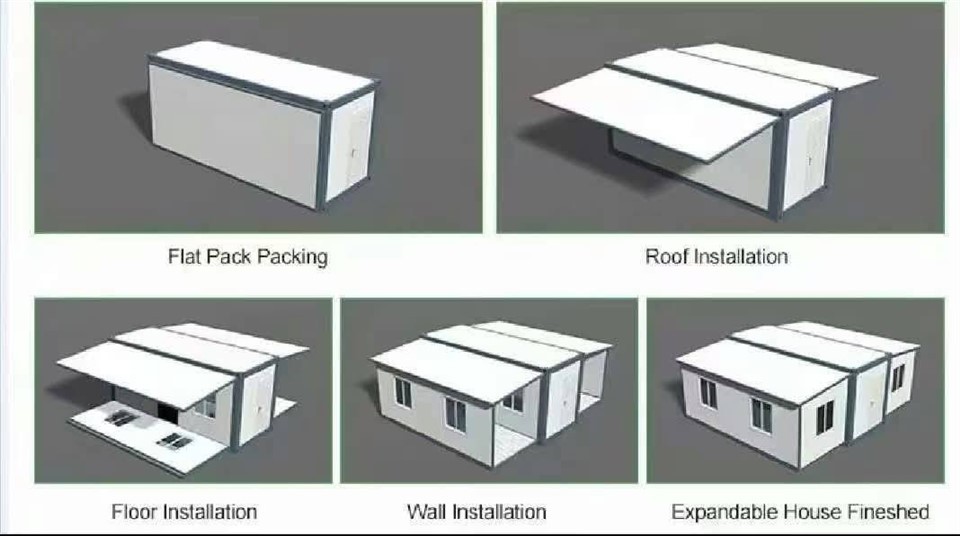

Package and delivery
Hot Tags: prefab expandable house 20ft 40ft, China prefab expandable house 20ft 40ft manufacturers, suppliers, factory
Standard Configuration List for 20-Foot Double-Wing Container
|
Expanded dimensions |
L5900*W6220*H2480mm |
|
|
Inside dimensions |
L5480*W6060*H2220mm |
|
|
Folded dimensions |
L5900*W2200*H2480mm |
|
|
Floor area |
36㎡ |
|
|
Weight |
2800kg |
|
|
Main frame (fully galvanized) |
Top side rail |
80×100×2.5mm Galvanized Square Tube |
|
Top end rail |
3.0mm Galvanized Bent Parts |
|
|
Top Transverse Secondary Beam |
40*20*1.8mm Galvanized Square Tube |
|
|
Bottom side rail |
80×100×2.5mm Galvanized Square Tube |
|
|
Bottom end rail |
3.0mm Galvanized Bent Parts |
|
|
Bottom Transverse Secondary Beam |
40*60*2.0mm Galvanized Square Tube |
|
|
5mm Galvanized Suspension Bracket |
L210*W150*H160mm |
|
|
Steel column |
2.5mm Galvanized Bent Parts |
|
|
Side wing frame(fully galvanized) |
Top wing frame |
40×80×1.5mm Galvanized P-Shaped Pipe |
|
50×100×1.5mm Galvanized Square Tube |
||
|
Bottom wing frame |
60×80×2.0mm Galvanized Square Tube |
|
|
40×60×1.5mm Galvanized Square Tube |
||
|
Folding hinge |
130mm Galvanized Hinge |
|
|
Overall Frame Protective Coating |
Spray baking paint |
Electrostatic Powder Spraying / Direct Powder Baking Paint Process + Anti-Corrosion Coating |
|
Roof |
Exterior roof |
950 Type - 75mm Thick Double-sided 0.3mm EPS Color Steel Composite Panel, Grayish White |
|
Interior ceiling |
950 Type - 50mm Thick Double-sided 0.3mm EPS Color Steel Composite Panel, Grayish White |
|
|
Wall panel |
Side walls, front and rear walls |
950 Type - 75mm Thick Double-sided 0.3mm EPS Color Steel Composite Panel, Grayish White |
|
Interior partition walls |
950 Type - 50mm Thick Double-sided 0.3mm EPS Color Steel Composite Panel, Grayish White |
|
|
Flooring |
Main floor |
18mm Thick Fireproof Cement Fiber Floor |
|
Floor of double wings |
18mm Thick Bamboo Plywood |
|
|
Doors & Windows |
Standard Configured Plastic-Steel Double-Glazed Sliding Windows |
930x930mm 8sets |
|
Plastic-Steel Double-Glazed Sliding Windows |
500x500mm 1set |
|
|
Entrance door |
Standard Steel Double-Doors (KFC-style doors and KFC-style sliding entrance doors can be customized) |
|
|
Electric system |
Circuit break system |
32A Leakage Protector, 1 pc. |
|
Lights |
40*40 Panel Light, Large Ceiling Light |
|
|
Sockets |
National Standard Socket (Socket standards can be configured according to customer requirements) |
|
|
Switches |
National Standard Single-key Switch (Switch standards can be configured according to customer requirements) |
|
|
Wires |
National standard wires: incoming line 6mm², air conditioner socket 4mm², ordinary socket 2.5mm², lighting 1.5mm². |
|
|
Accessories |
Including ceiling cornice, skirting board, corner trim, waterproof tape, lifting strap, structural adhesive, glue gun |
|
